Module Carriers
>
Overview
ACQ1102 2 site compact FMC/ELF carrier
2 site FMC/ELF carrier, full support for Vita 57 FMC LFP.
Up to 64 channels in 1U.
Large channel count, compact rackmount system, same case as
ACQ1002R
.
Gigabit Ethernet 1000-T.
Optional 2 SFP+ fiber comms ports:
E: Ethernet 1000X
U: HUDP full 100MB/s low latency streaming data on Ethernet 1000X/ UDP
W: White Rabbit nsec level timing
White Rabbit Inside
.
A,B : PCIe on Aurora to 400MB/s per port.
ACQ1102 Front Panel Example, customised example
ACQ1102 Rear Panel, standard

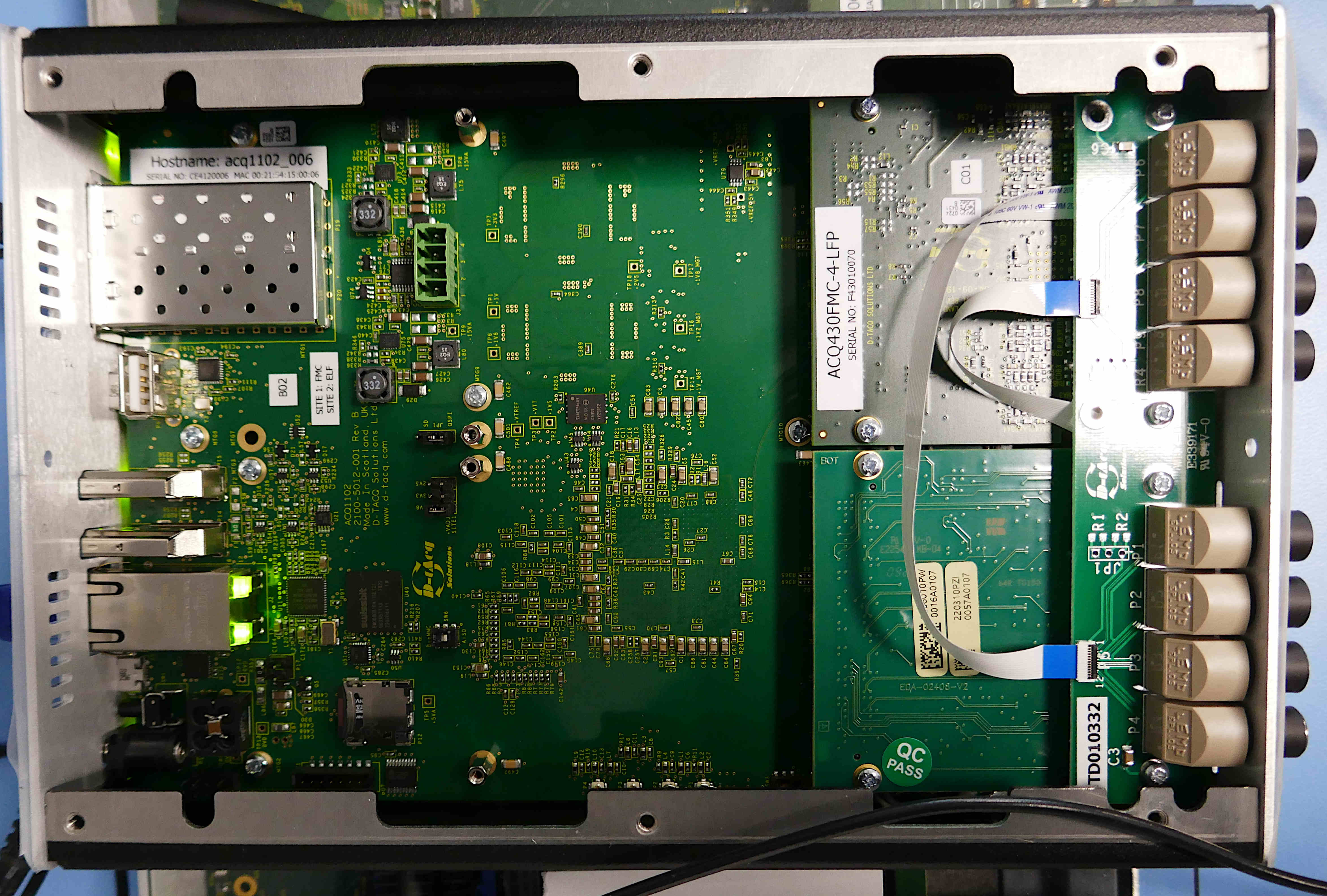

ACQ1102 Inside the box, 2 FMC modules fitted
